LoRaWAN

Long-Range, Low-Power Tracking Across Industrial Yards & Outdoor Areas

Track trucks, containers, outdoor assets, and personnel across large industrial campuses using LoRaWAN’s long-range communication and ultra-low power consumption—ideal for yard management and extended outdoor visibility.

Explore LoRaWAN Hardware

Overview — What is LoRaWAN?

LoRaWAN (Long Range Wide Area Network) is a low-power wireless communication protocol designed for long-range tracking and monitoring. Within industrial campuses and yards, LoRaWAN is well-suited for truck-in/truck-out management, yard management, and outdoor asset tracking across wide areas.

How it works

LoRaWAN tags periodically send small data packets over long distances to LoRaWAN gateways. The network server processes these messages and provides location information based on RSSI/TDoA techniques. While less accurate than UWB or BLE AoA, LoRaWAN excels in wide coverage and low-power outdoor tracking.

LoRaWAN

Use Cases of LoRaWAN

People Tracking (Large Campus)

Improve safety and visibility for workers in outdoor zones.

Container & Yard Asset Tracking

Locate trailers, containers, material handling units, and movable assets.

Truck Tracking (Inbound & Outbound)

Monitor real-time truck entry, exit, and movement within the yard.

FG Dispatch Monitoring

Track finished goods staging and outbound dispatch.

Equipment Tracking (Outdoor Yard Machinery)

Track forklifts, cranes, tow tractors, and other yard equipment to improve utilization and minimize search time.

LoRaWAN Hardware

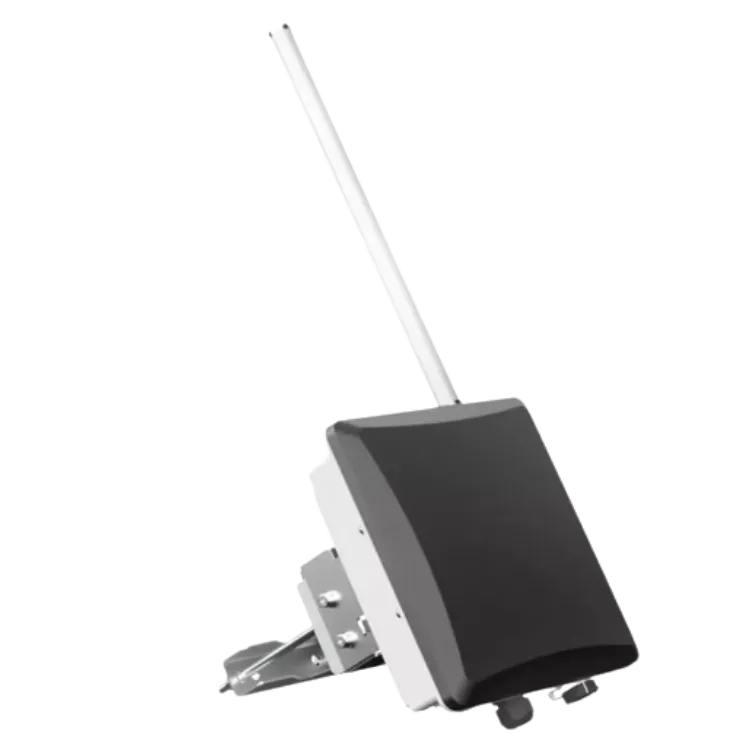

VTS-RK 8 LoRa Gateway

VTS-RK 8 LoRa Gateway

Product Size

240mm × 240mm × 89.5mm

Positioning Accuracy

5–10 meter

Power Supply

PoE / Wi-Fi

Operating Temperature

-40 to +70°C

Installation

Wall or Pole Mounting

IP Protection

IP67

Contact with Us

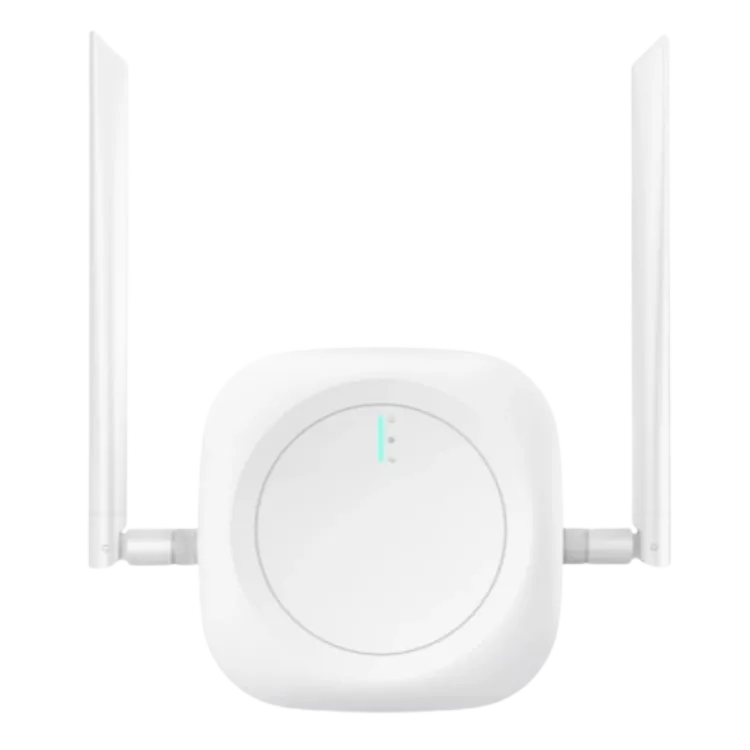

VTS-GW2 LoRa Gateway

VTS-GW2 LoRa Gateway

Product Size

194.4mm × 120mm × 22.5mm

Positioning Accuracy

5–10 meter

Power Supply

PoE / Wi-Fi

Operating Temperature

-40 to +55°C

Installation

Wall Mounting (Indoor)

IP Protection

IP66

Contact with Us

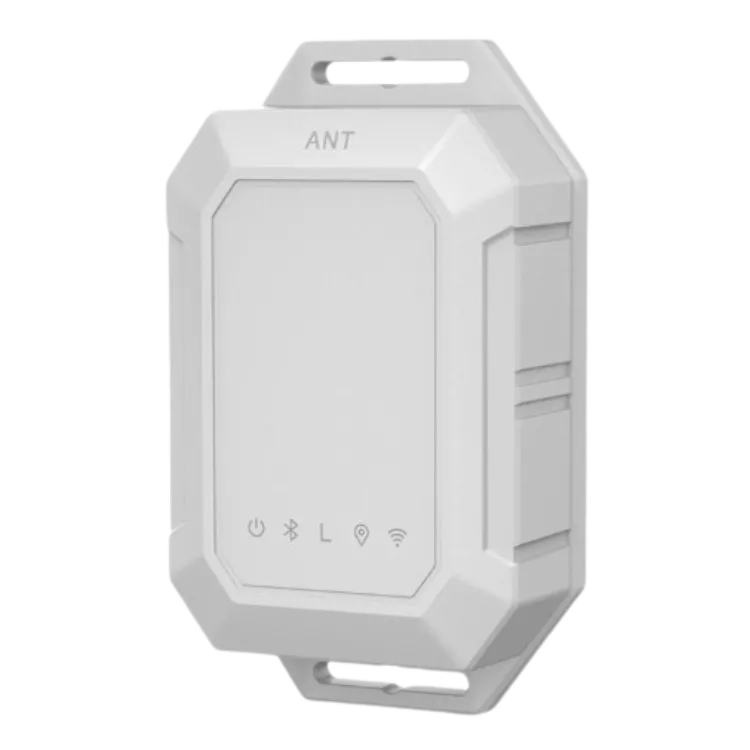

VTS-001BG Pro LoRa Asset Tag

VTS-001BG Pro LoRa Asset Tag

Product Size

122.6mm × 72mm × 33.8mm

Material

ASA + PC

Battery Type

12000mAh – Replaceable

Battery Life

9 months (update every 5 min)

Operating Temperature

-20 to +80°C

IP Protection

IP67

Contact with Us

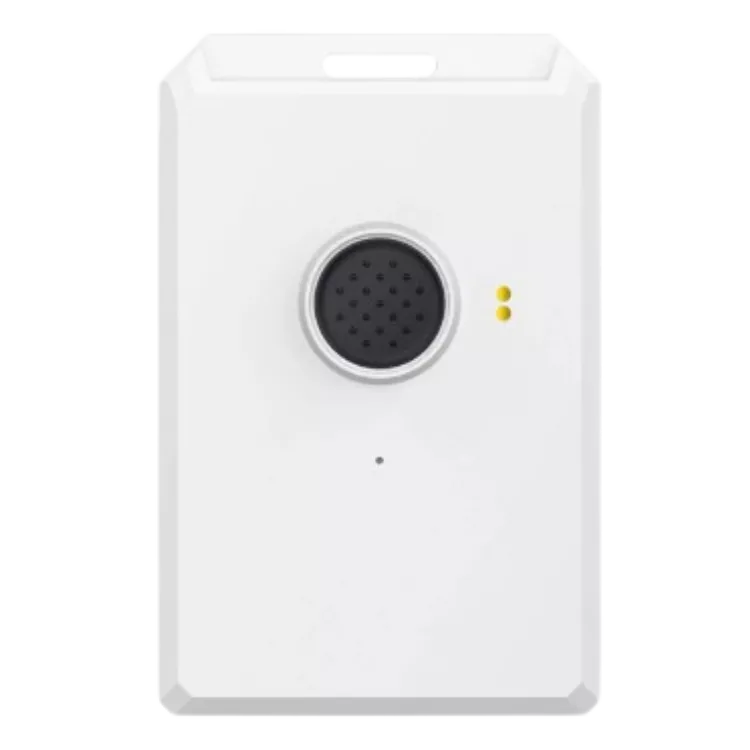

VTS-010-CT LoRa Person Tag

VTS-010-CT LoRa Person Tag

Product Size

91mm × 59mm × 7.5mm

Material

ABS

Battery Type

950mAh – Rechargeable

Battery Life

6 days (update every 5 min)

Operating Temperature

-20°C to +60°C

IP Protection

IP66

Contact with Us

Industries Using LoRaWAN

LoRaWAN is ideal for industries that operate large outdoor areas where wide coverage and low-maintenance tracking are essential.

Top Right Border

Oil & Gas Manufacturing

Top Right Border

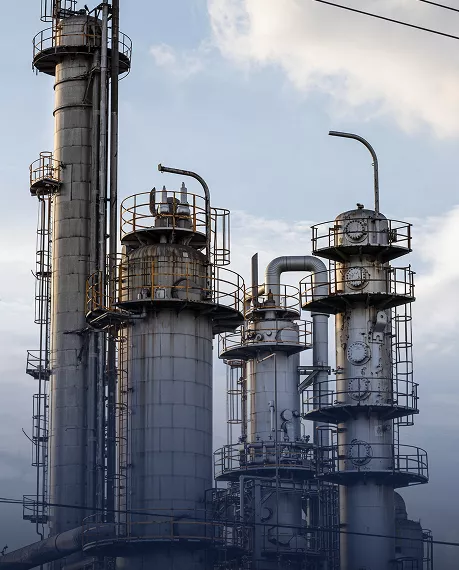

Chemical Manufacturing

Top Right Border

Automotive Manufacturing

Key Features of LoRaWAN

Wide Coverage

Can cover kilometers of range within premises with very few gateways.

Ideal for Outdoor Tracking

Used for truck movement, container tracking, and yard management.

Cost-Effective at Scale

Low infrastructure and device cost compared to high-precision RTLS.

Flexible Integration

Easily integrates with ERP, WMS, and yard management systems.
