BLE AoA
Bluetooth Low Energy – Angle of Arrival (BLE AoA) enables sub-meter indoor accuracy using antenna-array locators and long-life BLE tags. Ideal for Industry 4.0 environments that need real-time visibility of assets, people, equipment, and material movement.
Overview – What is BLE AoA?
Bluetooth Low Energy — Angle of Arrival (BLE AoA) is an indoor positioning technique that uses BLE transmissions together with gateway receivers fitted with antenna arrays to determine the direction a signal comes from. By combining angle measurements from multiple gateways, the system triangulates a tag’s position in real time with sub-meter accuracy — ideal where precise indoor location matters.
How BLE AoA Works

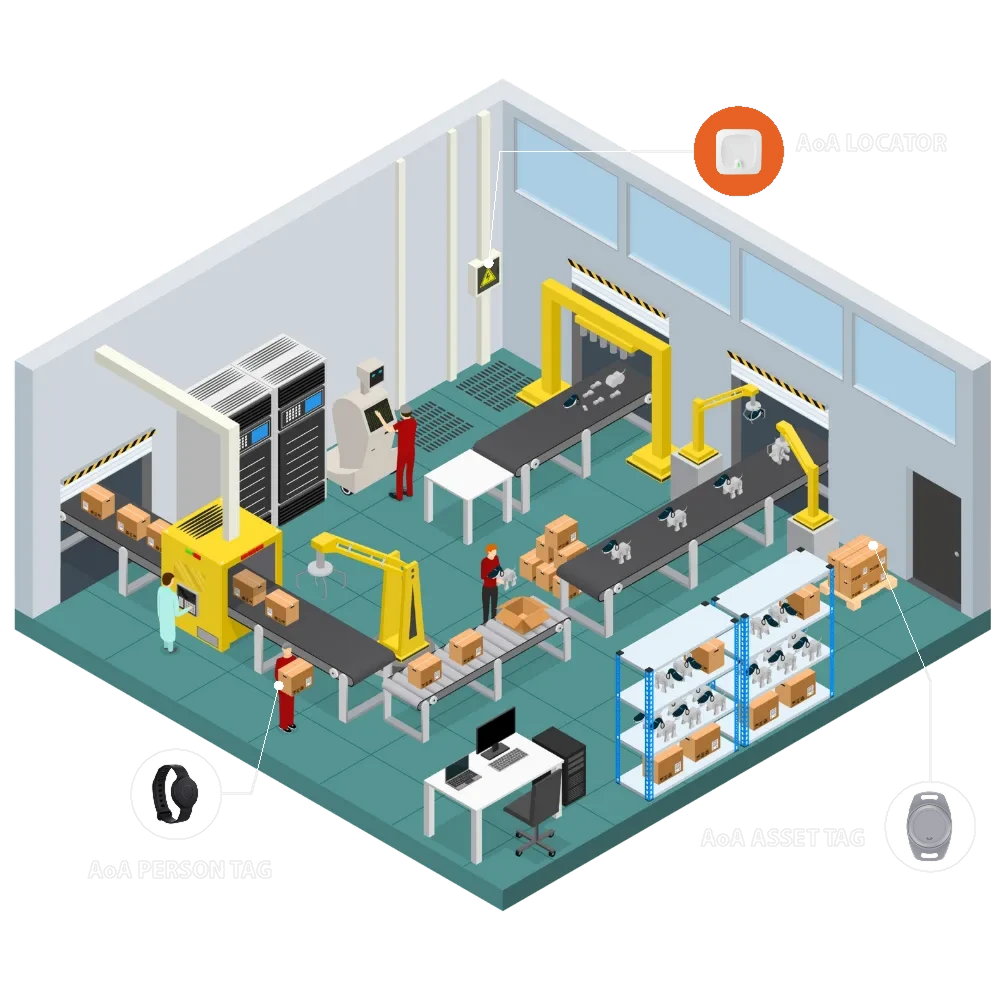

BLE tags broadcast packets, which are received by gateways with antenna arrays. These gateways calculate the angle of arrival (AoA) for each signal. The backend combines AoA data from multiple gateways to triangulate a 2D position, with filters and map constraints improving stability and accuracy.
Use Cases of BLE AoA

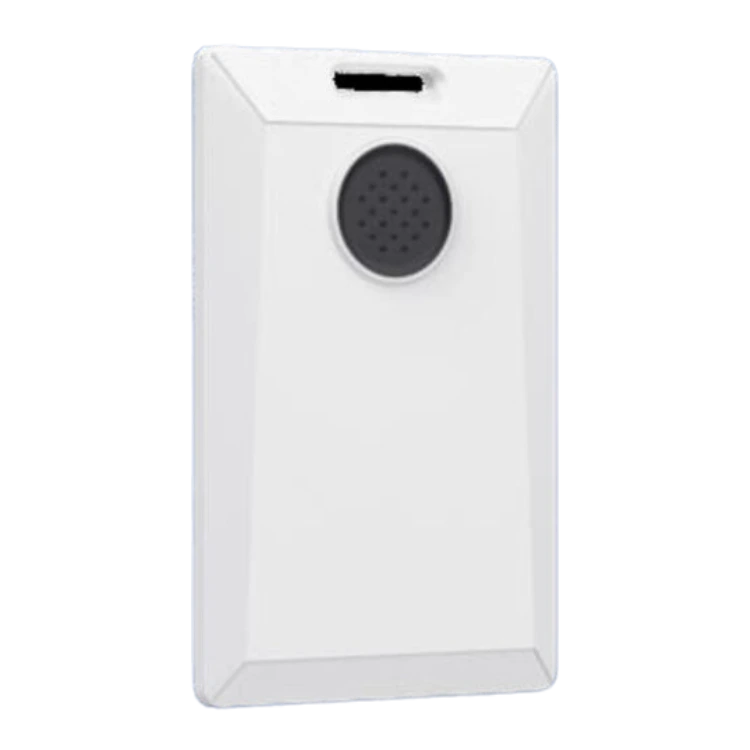

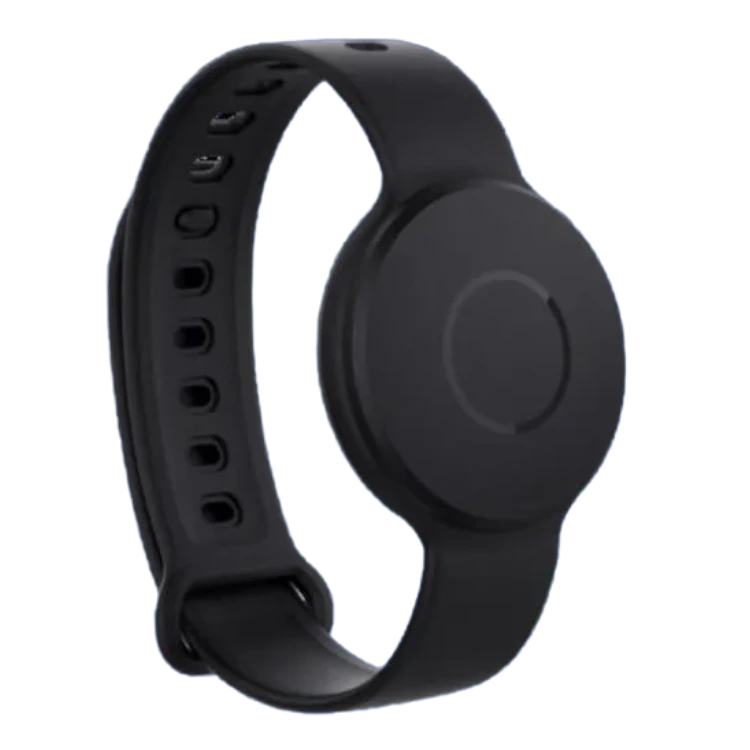

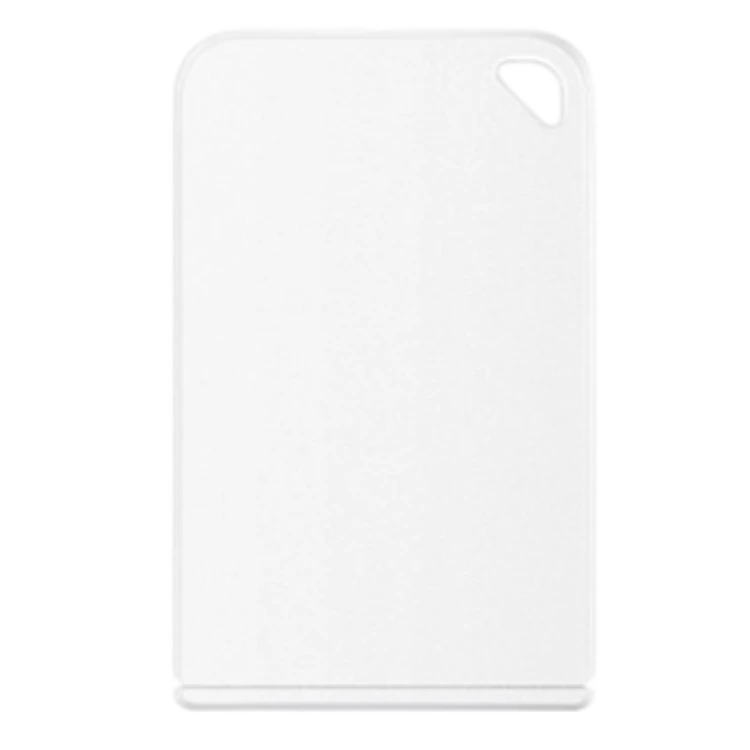

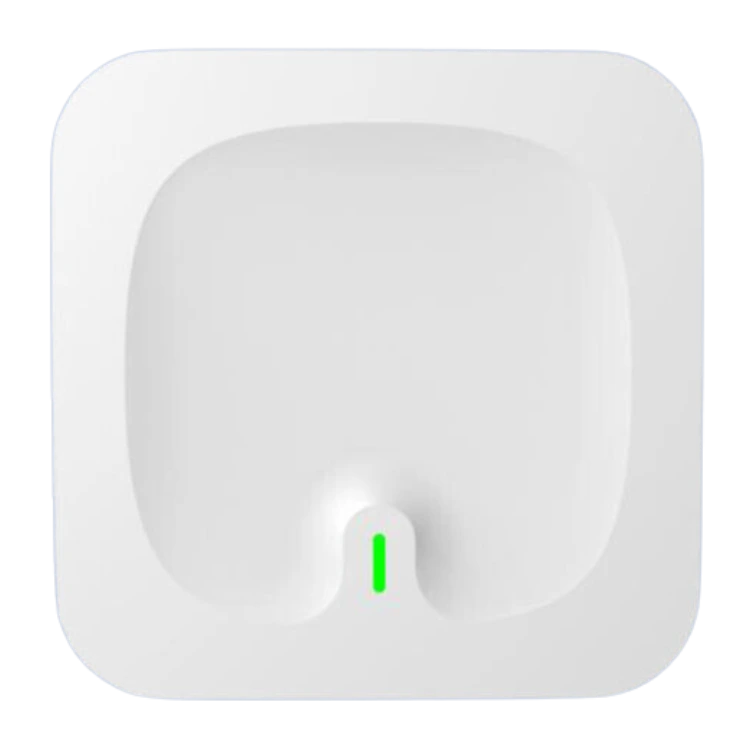

BLE AoA Hardware
We’re here to answer all your questions
Quick answers to questions you may have.
Accuracy depends on hardware, anchor density, line-of-sight and the environment. Typical results: decimeter to sub-meter accuracy in controlled spaces. In cluttered industrial environments expect accuracy to vary (often 0.5–2 m) — we recommend a site survey to estimate real-world performance.
Anchor spacing is use-case dependent. Typical spacing ranges from 10–25 meters, but tighter spacing is needed for high-accuracy or dense, reflective environments. We perform a site assessment and recommend the optimal layout.
Warehousing, logistics, Smart Retail & Supermarkets, Smart Offices, Airports & Convention Centres — essentially any indoor environment that needs precise asset or personnel location, process optimization, or safety monitoring.
Yes, it can, but accuracy may be affected. Proper anchor placement, spacing, orientation, and calibration help maintain reliable performance.
Industries Using BLE AoA
BLE AoA supports high-precision Real Time Locating Systems (RTLS) across:
Key Features of BLE AoA
Get in Touch With Us
Have questions about BLE AoA or looking for the right RTLS solution for your facility? Fill out the form below and our experts will connect with you shortly.
